Sensor Type
|
1/4-type Super
HAD II CCD 960H
|
|
Auto ICR
function
|
Yes
(adjustable threshold)
|
|
ICR function
|
Y
|
|
Freeze
|
Y
|
|
Auto Slow
Shutter
|
Y
|
|
Slow Shutter
Function
|
Y
|
|
Wide Dynamic
Range
|
Yes (Advanced
90dB)
|
|
Signal System
|
PAL(Interlaced-PsF
mode) or Progressive Scan
|
|
Elements
|
570000
|
|
Horizontal
Resolution
|
670
|
|
Lens
|
x40 Zoom
|
|
Lens - Detail
|
0
|
|
Lens - f stops
|
0
|
|
Zoom Movement
Speed
|
0
|
|
Digital Zoom
|
0
|
|
Angle of View
H (WIDE)
|
0
|
|
Min Working
Distance (WIDE)
|
10
|
|
Min Working
Distance (tele)
|
1500
|
|
Stabilizer
|
Y
|
|
Sync System
|
Internal/External
(V-Lock)
|
|
Recomended
Illumination
|
100
|
|
Minimum
Illumination
|
0
|
|
Minimum
Illumination 2
|
0
|
|
AD
|
0
|
|
SN Ratio
|
50
|
|
Electronic
Shutter Speed
|
1
|
|
White Balance
|
Auto, ATW,
Indoor, Outdoor, Outdoor Auto, One-push, Manual, Sodium Vapor Lamp
Fix/Auto/outdoor
|
|
Gain
|
0
|
|
AE Control
|
Full Auto,
Shutter Priority, Iris Priority, Manual, Bright, Exposure Compensation, Slow
AE, Back Light Compensation, Slow Shutter - Auto/Manual
|
|
EV
Compensation
|
-10
|
|
Flicker
Compensation
|
No
|
|
Noise
Reduction
|
6 steps
(Adaptative 3DNR)
|
|
Spot AE
|
Y
|
|
Focusing
System
|
Auto
(Sensitivity: normal-low), One-push AF, Manual, Infinity, Interval AF, Zoom
Trigger AF, Near Limit, Focus Compensation with IR lighting
|
|
Effects
|
Black &
White, Neg. Art, E-Flip, Mirror, Color enhancement, Visibility enhancer,
Defog
|
|
Character
Generator
|
Yes (20
characters/line, max. 11 lines) - Extended
|
|
Grid/Cross
Disaply
|
Yes
|
|
Privacy Zone
Masking
|
Yes (with
Spherical Pan/tilt)
|
|
Privacy Zone
masking Detail
|
(24 mask, 8 on
screen, 160x120 matrix, mosaic)
|
|
Interlock with
pan, tilt and zoom
|
Yes (Spherical
interlocking)
|
|
Alarm function
|
Yes (Motion
detection with 4 zones)
|
|
Camera
Operation Switch
|
Zoom TELE,
Zoom WIDE
|
|
Aperture
Control
|
16 steps
|
|
Preset
|
6 positions, 1
custom/power on preset
|
|
User Memory
|
16
|
|
Serial
Interface
|
VISCA protocol
(TTL/CMOS), 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, Stop bit 1/2 bit
|
|
External Key
Switch
|
Y
|
|
Visca Model ID
|
478
|
|
Video Output
|
VBS: 1.0 Vp-p
(sync negative), Y/C ITU-R BT656 Style 36/72Mhz
|
|
Connector
|
9-Pin FFC, 4
pin Harness, 12-pin FFC
|
|
Metal Frame
|
Y
|
|
Lens Diameter
|
43
|
|
Storage
Temperature Humidity
|
-20
|
|
Operating
temperature/ Humidity
|
-5
|
|
Power
Consumption
|
2
|
|
Power Voltage
|
6
|
|
MTBF
(excluding lens)
|
5
|
|

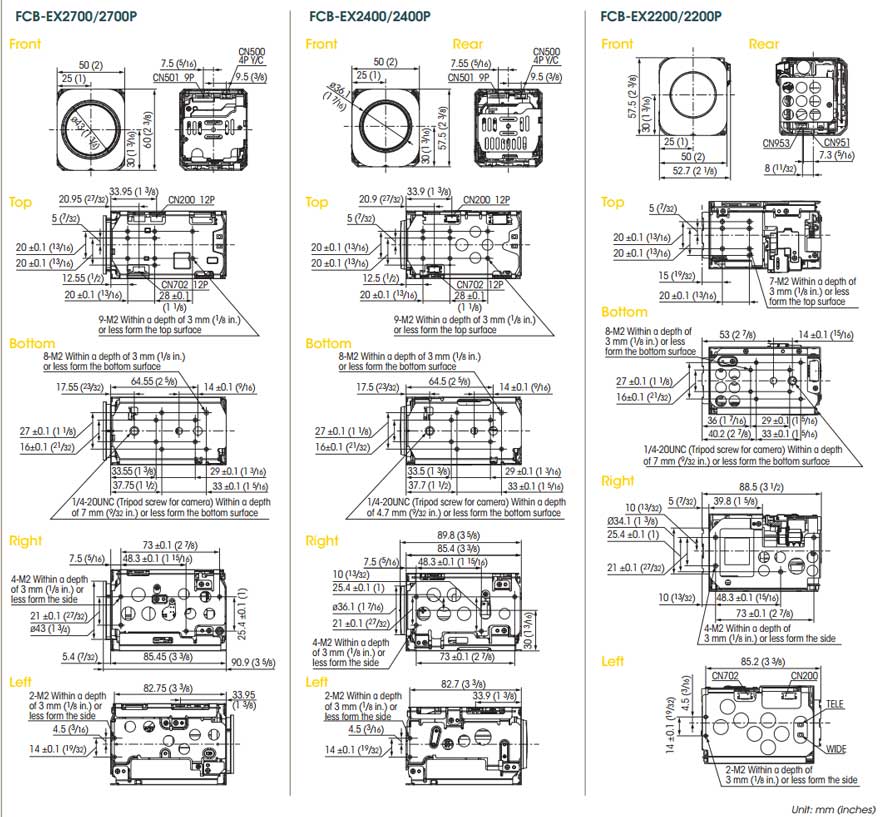

Weight
|
265
|
|
Width
|
50 mm
|
|
Depth
|
90
|
|
Height
|
60 mm
|
|
Order Quantity
|
10
|
|
Overvoltage
protections on I/O
|
VBS, V-LOCK
|
