The Sony FCB-EX1020P Color Block Camera with True Progressive Scan Technology with Exceptional Picture Quality and High Zoom Capabilities for Traffic and Surveillance Monitoring, Video Conferencing and Low Vision applications.

Sony continues to prevail on the cutting edge of the imaging industry with the latest addition to the FCB camera series. The SONY FCB-EX1020 (NTSC) and FCB-EX1020P (PAL) color block camera incorporates a 1/4 type ExView HAD™ CCD and features True Progressive Scan with exceptional picture quality and high zoom capabilities - 432x combined digital and optical zoom. In addition, the Sony FCB-EX1020 and FCB-EX1020P Camera is the first in this exceptional camera series with IP-Ready digital output, uniting several new and upgraded features with its renowned FCB performance and outstanding picture quality.

Description:：

(1) Support progressive scanning technology
(2) Equipped with digital output interface
(3) Multiple operation modes
(4) Support enhanced digital noise reduction function
(5) Wide dynamic functions supporting new technologies: automatic wide dynamic, interlaced wide dynamic and line by line wide dynamic
(6) Support image anti jitter function
(7) High resolution up to 550 TV lines
(8) Support advanced white balance mode
(9) Support operating temperature range of - 5oC to 60oC
(10) Support temperature reading function
(11) Support slow AE response function
(12) Support for color enhancement
(13) Continuation of functions supported by versions C and D

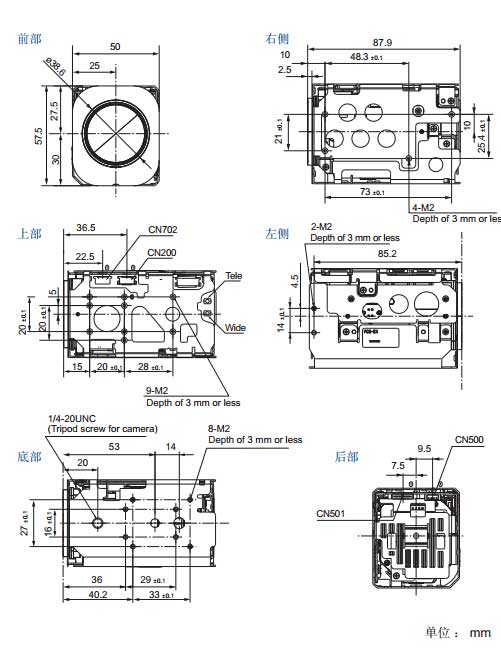

SIZE：

Camera Specifications	Detail:
Image Device	1/4 type EXview HAD™ CCD (Progressive Scan)
Effective Pixels	400,000
Digital Zoom	12x (432x with optical zoom)
Horizontal Viewing Angle	57.8° (wide end) to 1.7° (tele end)
Sync System	Internal/External (V-lock)
Electronic Shutter	1/1 to 1/10,000 s, 22 steps
White Balance	Auto
	ATW
	Indoor
	Outdoor
	One-push
	Manual
Gain	Auto/Manual (-3 to 28 dB, 2dB steps)
Wide Dynamic Range	Auto Mode IS/PS Mode
Backlight Compensation	On/Off
Privacy Zone Masking	On/Off (24 positions, 8 positions per screen) 14 Colors + Mosaic
Character Generator	Mode: On/Off (White Balance, Gain, etc.)
Character Generator	Title: 11 Lines (20 characters per line)
Flicker Cancel	Auto
Focus System	Auto (Sensitivity: normal, low)
	One-push AF
	Manual
	Infinity
	Interval AF
	Zoom trigger AF
Camera Operation / Zoom Switch	Zoom Tele
Camera Operation / Zoom Switch	Zoom wide
Picture Effects	E-flip
	Nega Art
	Black & White
	Mirror Image
	Color
Video Output Specifications	Detail:
Lens Value	36x optical zoom
S/N Ratio	More than 50 dB
Minimum Illumination	1.4 lx (typical) (F1.6, 50 IRE)
Video Output	VBS: 1.o Vp-p (sync negative)
Video Output	Y/C
Signal System	PAL
Horizontal Resolution	540 TV Lines
Interfaces Specifications	Detail:
Camera Control Interface	VISCA (TTL signal level) Baud Rate: 96Kb/s, 19.2 Kb/s, 38.4 Kb/s
Camera Control Interface	Stop bit: 1/2 bit selectable
General Specifications	Detail:
Dimensions (W x H x D)	50.0 mm x 57.5 mm x 87.9 mm
Weight	230 g
Operating Temperature	-5° C to 60° C (32° to 122° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Storage Humidity	6 to 12 V DC/ 3.0 W (motors inactive, 4.0 W (motors active)

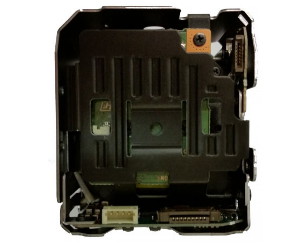

SONY FCB-EX1020P&FCB-EX1020

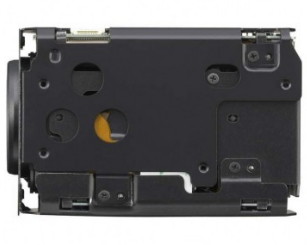

SONY FCB-EX1020P&FCB-EX1020

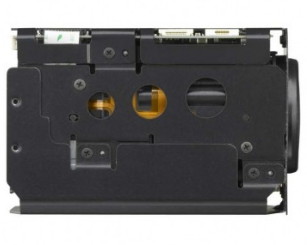

SONY FCB-EX1020P&FCB-EX1020
