Camera Specifications

Detail:

Image Device

1/4-type EXview HAD CCD

Effective Pixels

Approx. 440000 pixels

Digital Zoom

12x (432x with optical zoom)

Horizontal Viewing Angle

57.8º (wide) to 1.7º (tele)

Minimum Object Distance

320 mm (wide)

1500 mm (tele)

Electronic Shutter

1/1 to 1/10000 s

22 steps

White Balance

Auto

ATW

Indoor

Outdoor

One-push

Manual

Gain

Auto / Manual (-3 to 28 dB

2 dB steps)

Wide Dynamic Range

On/Off

Backlight Compensation

On/Off

Privacy Zone Masking

On / Off (24 positions)

Character Generator

Mode display/Multi-line OSD

(OSD has priority over Mode display)

Focus System

Auto (Sensitivity: normal and low)

One-push AF

Manual

Infinity

Interval AF

Zoom Trigger AF

Camera Operation / Zoom Switch

Zoom Tele

Zoom Wide

Picture Effects

E-Flip

Nega Art

Black & White

Mirror Image

Exposure Control

Auto

Manual

Priority mode (shutter priority & iris priority)

Bright

EV compensation

Backlight compensation

Slow AE

Video Output Specifications

Detail:

Lens Value

36x

S/N Ratio

More than 50 dB (weight ON)

Minimum Illumination

1.4 lux

Video Output

VBS: 1.0 Vp-p (sync negative)

Y/C

Horizontal Resolution

On/Off (On: 530 TV lines)

Horizontal Resolution Value

530 TV Lines

Interfaces Specifications

Detail:

Camera Control Interface

VISCA (TTL signal level)

Baud rate: 9.6 Kb/s

19.2 Kb/s

38.4 Kb/s

1 or 2 Stop bit selectable

General Specifications

Detail:

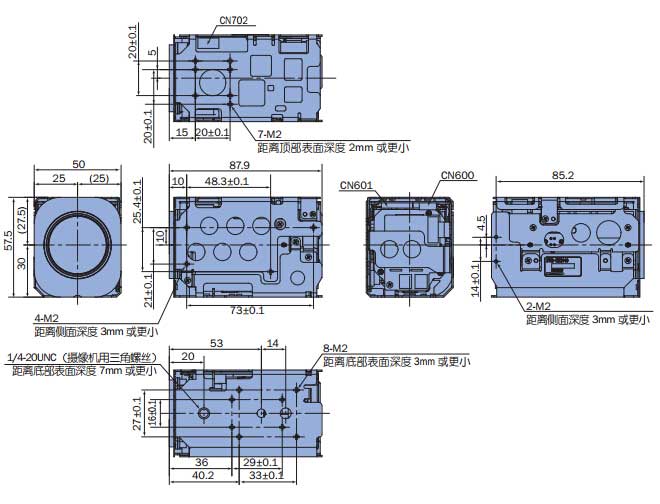

Dimensions (W x H x D)

2 x 2 3/8 x 3 1/2 inches

( 50.0 x 57.5 x 87.9 mm)

Weight

8.1 oz (230 g)

Operating Temperature

32 to 122 ºF (0 to 50 ºC)

Storage Temperature

-4 to 140 ºF (-20 to 60 ºC)

Power Consumption

2.6 W (motors inactive)

4.9 W (motors active)

Power Requirements

6 to 12 V DC
