SONY FCB-EX1000P&FCB-EX1000 36x Color Block Camera - PAL &NTSC_SafeEye

1/4 type EXview HAD CCD
Horizontal Resolution - 460 TV Lines
Minimum Sensitivity of 1.4 lux (50 IRE)
432x optical zoom (36x zoom / 12x optical)
High Performance Digital Signal Processor (DSP)
Auto ICR (IR Cut filter Removal) Mode
Electronic Shutter/Slow Shutter
Alarm Function
Picture Freeze Function
Electronic-Flip (E:Flip)
High-speed serial communication (max. 38.4 kbps) and TTL signal-level control (VISCA™ protocol)
Programmable factory preset
Various customizable settings
Key switch control compatibility
VBS and Y/C video output
Spot AE
Internal/External sync

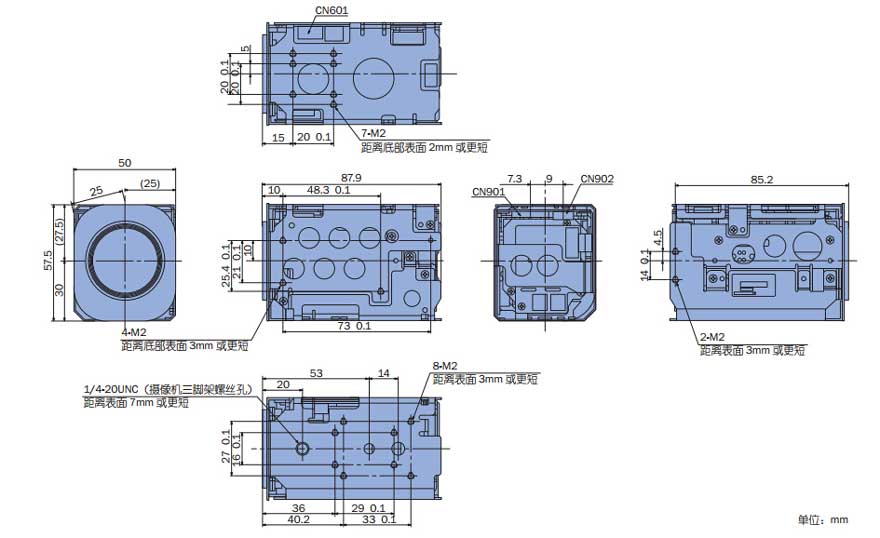

SIZE：

Camera Specifications	Detail:
Image Device	1/4-type EXview HAD CCD
Effective Pixels	Approx. 440000 pixels
Digital Zoom	12x (432x with optical zoom)
Horizontal Viewing Angle	57.8° (wide end) to 1.7° (tele end)
Minimum Object Distance	320 mm (wide end) to 1500 mm (tele end)
Sync System	Internal / External (V-lock)
Electronic Shutter	1/1 to 1/10000 s
Electronic Shutter	22 steps
White Balance	Auto
	ATW
	Indoor
	Outdoor
	One-push
	Manual
Gain	Auto / Manual (-3 to 28 dB
Gain	2 dB steps)
EV Compensation	-10.5 to 10.5 dB (1.5 dB steps)
Backlight Compensation	On / Off
Privacy Zone Masking	On / Off (24 positions)
Focus System	Auto (Sensitivity: normal and low)
	One-push AF
	Manual
	Infinity
	Interval AF
	Zoom trigger AF
Camera Operation / Zoom Switch	Zoom Tele
Camera Operation / Zoom Switch	Zoom Wide
Picture Effects	E-Flip
	Nega Art
	Black & White
	Mirror Image
Exposure Control	Auto
	Manual
	Priority mode
	Bright
	EV compensation
	Backlight compensation
	Slow AE
Video Output Specifications	Detail:
Lens Value	36x
S/N Ratio	More than 50 dB
Minimum Illumination	1.4 lux
Video Output	VBS: 1.0 Vp-p (sync negative)
Video Output	Y/C
Signal System	PAL
Horizontal Resolution Value	460 TV Lines
Interfaces Specifications	Detail:
Camera Control Interface	VISCA (TTL signal level)
	Baud rate: 9.6 Kb/s
	19.2 Kb/s
	38.4 Kb/s
	1 or 2 Stop bit selectable
General Specifications	Detail:
Dimensions (W x H x D)	2 x 2 3/8 x 3 1/2 inches
Dimensions (W x H x D)	( 50.0 x 57.5 x 87.9 mm)
Weight	8.1 oz (230 g)
Operating Temperature	32 to 122 °F (0 to 50 °C)
Storage Temperature	-4 to 140 °F (-20 to 60 °C)
Power Consumption	1.6 W (motors inactive)
Power Consumption	4.0 W (motors active)
Power Requirements	6 to 12 V DC

SONY FCB-EX1000P&FCB-EX1000
