Camera
Specifications
|
Detail:
|
|
Image Device
|
1/4 type
Exview HAD™ CCD (Progressive Scan)
|
|
Effective
Pixels
|
440,000
|
|
Digital Zoom
|
12x (432x with
optical zoom)
|
|
Horizontal
Viewing Angle
|
55.8° (wide
end) to 2.1° (tele end)
|
|
Minimum Object
Distance
|
10 mm* (wide)
~ 1,500 mm (tele)
|
|
*Default: 320
mm
|
|
Sync System
|
Internal/External
(V-lock)
|
|
Electronic
Shutter
|
1/1/ to
1/10,000 s, 22 steps
|
|
White Balance
|
Auto
|
|
ATW
|
|
Indoor
|
|
Outdoor Auto
|
|
Sodium Vapor
Lamp (fix/auto)
|
|
One-push
|
|
Manual
|
|
Gain
|
Auto/Manual/Max.
Gain Limit (-3 to 28 dB, 2 dB steps)
|
|
Wide Dynamic
Range
|
Auto Mode
IS/PS Mode
|
|
Privacy Zone
Masking
|
Spherical
|
|
Character
Generator
|
Title: 20
characters/line, max. 11 lines
|
|
Focus System
|
Auto
(Sensitivity: normal, low)
|
|
One-push AF
|
|
Manual
|
|
Infinity
|
|
Interval AF
|
|
Zoom trigger
AF
|
|
Focus
Compensation in ICR On
|
|
Camera
Operation / Zoom Switch
|
Key Switch
Control
|
|
Zoom Tele
|
|
Zoom Wide
|
|
Effects
|
E-Flip
|
|
Nega Art
|
|
Black &
White
|
|
Mirror Image
|
|
Color
|
|
Video Output
Specifications
|
Detail:
|
|
Lens Value
|
36x optical
zoom, f=3.4mm (wide) ~122.4mm (tele)
|
|
S/N Ratio
|
More than 50
dB
|
|
Minimum
Illumination
|
1.4 lx
(typical) (F1.6 50 IRE)
|
|
Video Output
|
Analog: VBS:
1.0 Vp-p (dync negative), Y/C
|
|
Digital:
Y/Cb/Cr 4:2:2: (ITU-R BT656 Style)
|
|
Signal System
|
NTSC
|
|
Horizontal
Resolution
|
550 TV Lines
|
|
Interfaces
Specifications
|
Detail:
|
|
Camera Control
Interface
|
VISCA (TTL
signal level) Baud Rate: 9.6Kb/s, 19.2Kb/s, 38.4Kb/s
|
|
Stiop bit: 1/2
bit selectable
|
|
General
Specifications
|
Detail:
|
|

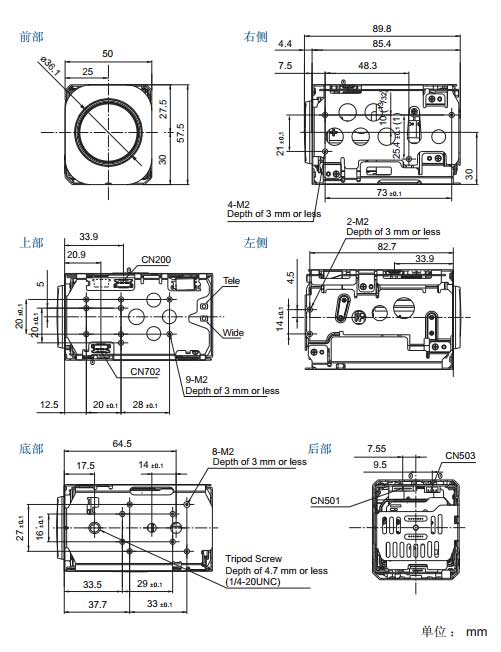

Dimensions (W
x H x D)
|
50.0 x 57.5 x
88.5 (mm)
|
|
Weight
|
230 g
|
