SONY FCB-EX990DP &FCB-EX990D NTSC 26x Wide D PAL Version Block Camera_SafeEye

Overview
Specifications
Download

1/4-type EXview HAD CCD
High Horizontal Resolution of 530 TV Lines
312x Zoom Ratio (26x Optical, 12x Digital)
Wide Dynamic Range
Advanced Spherical Privacy Zone Masking
Video Motion Detection
Minimum Illumination - 0.7 lx (typical)
E-Flip Function
Multi-Line On-screen Display
Auto ICR (IR Cut Filter Removal) Mode
Picture Freeze Function
Key Switch Connector (CN601) for Camera Control with External Equipment
Electronic Shutter/Slow Shutter
High-Speed Serial Interface (maximum 38.4 Kb/s) with TTL Signal-Level Control - VISCA protocol
Internal/External Sync

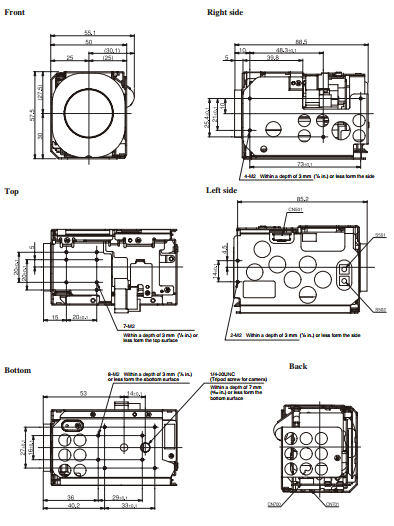

SIZE：

Camera Specifications	Detail:
Image Device	1/4-type EXview HAD CCD
Effective Pixels	Approx. 440000 pixels
Digital Zoom	12x (312x with optical zoom)
Horizontal Viewing Angle	54.2º (wide) to 2.2º (tele)
Minimum Object Distance	320 mm (wide)
Minimum Object Distance	1500 mm (tele)
Sync System	Internal/External (V-lock)
Electronic Shutter	1 to 1/10000 s
Electronic Shutter	22 steps
White Balance	Auto
	ATW
	Indoor
	Outdoor
	One-push
	Manual
Gain	Auto / Manual (-3 to 28 dB
Gain	2 dB steps)
Wide Dynamic Range	On/Off
Backlight Compensation	On/Off
Privacy Zone Masking	On / Off (24 positions)
Character Generator	Mode display/Multi-line OSD (OSD has priority over Mode display)
Focus System	Auto (Sensitivity: normal and low)
	One-push AF
	Manual
	Infinity
	Interval AF
	Zoom Trigger AF
Camera Operation / Zoom Switch	Zoom Tele
Camera Operation / Zoom Switch	Zoom Wide
Picture Effects	E-Flip
	Nega Art
	Black & White
	Mirror Image
Exposure Control	Auto
	Manual
	Priority Mode
	Bright
	EV Compensation
	Backlight Compensation
	Slow AE
Video Output Specifications	Detail:
Lens Value	36x
S/N Ratio	More than 50 dB
Minimum Illumination	1.0 lux
Video Output	VBS: 1.0 Vp-p (sync negative)
Video Output	Y/C
Signal System	PAL
Horizontal Resolution	On/Off (On: 530 TV lines)
Horizontal Resolution Value	530 TV Lines
Interfaces Specifications	Detail:
Camera Control Interface	VISCA (TTL signal level)
	Baud rate: 9.6 Kb/s
	19.2 Kb/s
	38.4 Kb/s
	1 or 2 Stop bit selectable
General Specifications	Detail:
Dimensions (W x H x D)	2 1/8 x 2 3/8 x 3 1/2 inches
Dimensions (W x H x D)	(52.0 x 57.5 x 88.5 mm)
Weight	8.1 oz (230 g)
Operating Temperature	32 to 122 °F (0 to 50 C°)
Storage Temperature	-4 to 140 °F (-20 to 60 C°)
Power Consumption	2.6 W (motors inactive)
Power Consumption	5.4 W (motors active)
Power Requirements	DC 6 to 12 V

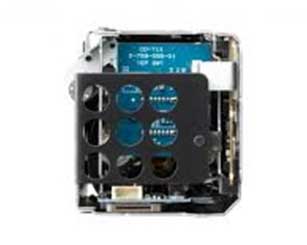

SONY FCB-EX990D&FCB-EX990D

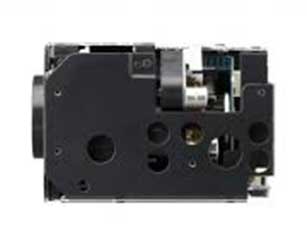

SONY FCB-EX990D&FCB-EX990D

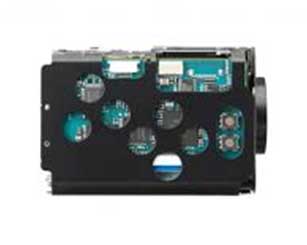

SONY FCB-EX990D&FCB-EX990D
