The FCB-EX985EP block camera combines superb picture quality with high zoom capabilities, up to 336x with optical zoom. Ideally suited for IP-ready monitoring applications, the FCB-EX985EP incorporates ¼-type SuperHAD II CCD with Interlace Scan with a digital output (ITU-R BT656). In addition, the FCB-EX985EP features StableZoom Image Stabilization and Sodium Vapor Lamp Mode to reduce the yellowing of images. Additional color enhancement features are ideally suited for low vision applications.

StableZoom Image Stabilization
Digital Output (ITU-R BT656)
Sodium Vapor Lamp
Temperature Readout
Color Enhancement
White Balance: Outdoor Auto Mode

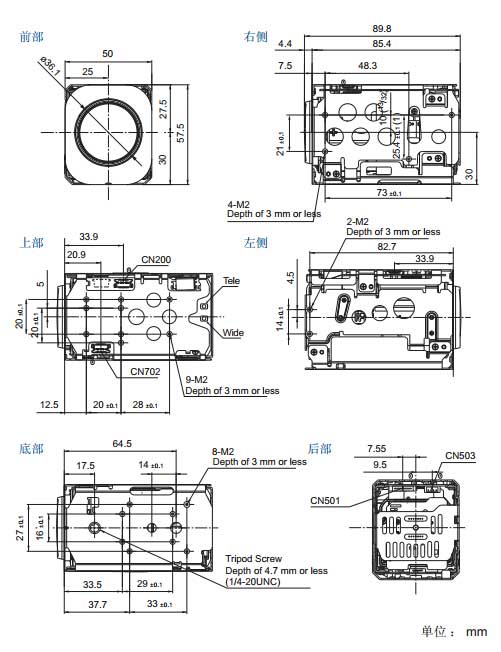

SIZE：

Camera Specifications	Detail:
Image Device	1/4-type SuperHAD II CCD (interlace Scan)
Effective Pixels	380,000
Digital Zoom	12x (336x with optical zoom)
Horizontal Viewing Angle	55.8° (wide end) ~ 2.1° (tele end)
Minimum Object Distance	10 mm* (wide) ~ 1500 mm (tele)
Minimum Object Distance	*Default: 290 mm
Sync System	Internal/External (V-lock)
Electronic Shutter	1/1 to 1/10,000 s, 22 steps
White Balance	Auto
	ATW
	Indoor
	Outdoor Auto
	Sodium Vapor Lamp (fix/auto)
	One-push
	Manual
Gain	Auto/Manual / Max. Gain Limit (-3 to 28 dB, 2 dB steps)
Privacy Zone Masking	Spherical
Character Generator	Title display (20 characters/line, 11 lines)
Focus System	Auto (Sensitivity: normal, low)
	One-push AF
	Manual
	Infinity
	Interval AF
	Zoom trigger AF
	Focus Compensation in ICR on
Picture Effects	E-Flip
	Nega Art
	Black & White
	Mirror Image
	Color
Video Output Specifications	Detail:
Lens Value	28x optical zoom (F=3.5mm (wide) ~ 98.0 mm (tele)
S/N Ratio	More than 50 dB
Minimum Illumination	0.3 lx (typical) (F1.35, 50 IRE)
Video Output	Analog: VBS: 1.0 Vp-p (sync negative, Y/C
Video Output	Digital: Y/Cb/Cr 4:2:2 (ITU-BT656 Style)
Signal System	PAL
Horizontal Resolution	550 TV Lines
Interfaces Specifications	Detail:
Camera Control Interface	VISCA (TTL signal level) Baud Rate: 9.6kb/s, 19.2Kb/s, 38.4Kb/s
Camera Control Interface	Stop bit: 1/2 bit selectable
General Specifications	Detail:
Dimensions (W x H x D)	50.0 x 57.5 x 88.5 mm
Weight	230 g
Operating Temperature	-5° C ~ 60°
Storage Temperature	-40° C ~ 60° C
Power Consumption	22.6 W (motors active: 4.4 W)
Power Requirements	6.0 V ~ 12.0 V DC

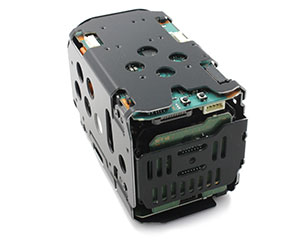

SONY FCB-EX985EP&FCB-CX985EP

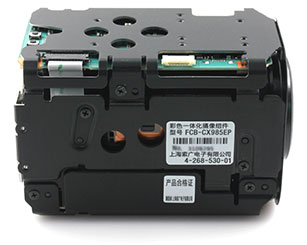

SONY FCB-EX985EP&FCB-CX985EP
