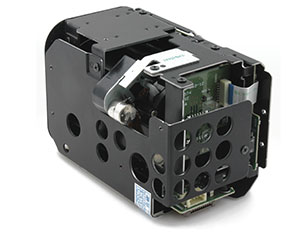

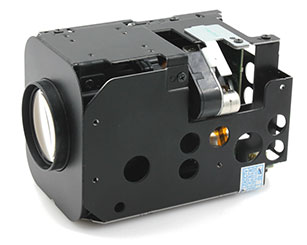

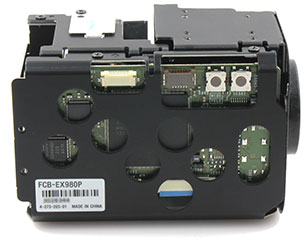

FCB-EX980P&FCB-CX980P series of camera modules feature a 1/4-inch EXview HADTM CCD combined with a new 26x "SMART" lens that enables high-magnification and anti-shake functions, allowing users to take small objects at long distances. Get a clear and stable image when zooming.
Characteristic:：
1/4 EXview HAD ™ the CCD
312 times zoom (26x optical, 12x digital)
stabilizer feature
point AE
automatic infrared filter mode (Auto ICR)
provides the external device the camera module to the switch interface * control
electronic shutter / Slow shutter
High-speed serial interface with TTL signal level control (VISCA protocol) (up to 38.4kb/s)

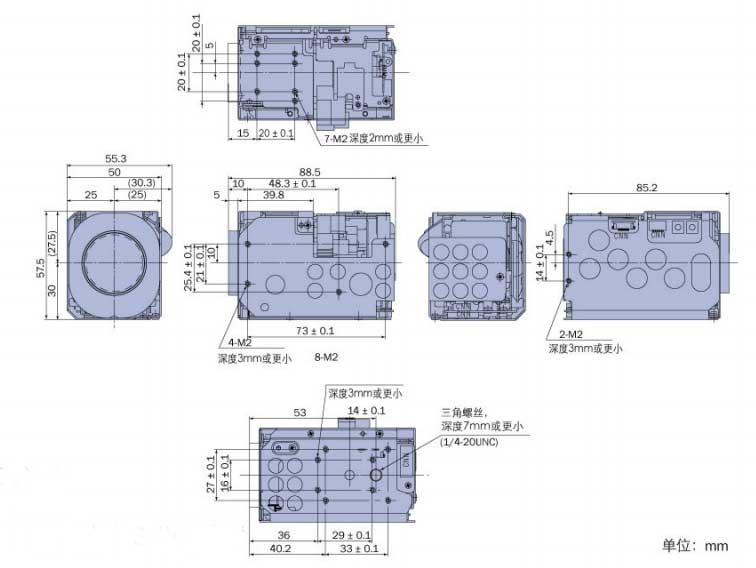

SIZE：
Generic Specifications
Image device 1/4 type Super HAD
Effective picture elements Approx. 740,000 pixels
Lens 26x optical zoom, f=3.5 mm (Wide) to 91.0 mm (Tele), F1.6 to F3.8
Digital zoom 12x (312x with optical zoom)
Viewing angle (H) 42.0° (Wide end) to 1.6° (Tele end)
Minimum working distance 320mm (Wide end) to 1500mm (Tele end)
Sync system Internal/External (V-Lock)
Minimum illumination 2.0 lx (typical) (50 IRE)
S/N ratio More than 50 dB
Electronic shutter 1/1 to 1/10,000 s, 22 steps
White balance Auto, ATW, Indoor, Outdoor, One-push, Manual
Gain Auto/Manual (-3 to 28 dB, 2 dB steps)
AE control Auto, Manual, Priority mode, Bright, EV compensation, Back-light compensation
EV compensation -10.5 to +10.5 dB (1.5 dB steps)
Back-light compensation On/Off
Privacy zone masking On/Off (24 positions)
Focusing system Auto (sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF
Picture effects E-Flip, Nega Art, Black & White, Mirror Image
Camera operation switch Zoom Tele, Zoom Wide
Video output VBS: 1.0 Vp-p (sync negative), Y/C Output
Camera control interface VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, Stop bit: 1 or 2 selectable
Storage temperature -20 to 60°C (-4 to 140°F)
Operating temperature 0 to +50°C (32 to 122°F)
Power consumption 6 to 12 V DC/1.6 W (motors inactive), 3.6 W (motors active)
Mass 230 g (8.1 oz)
Dimensions (WxHxD) 55.3 x 57.5 x 88.5 mm (2 1/4 x 2 3/8 x 3 1/2 inches)
