Camera
Specifications
|
Detail:
|
|
Image Device
|
1/4-type Super
HAD
|
|
Effective
Pixels
|
Approx. 800000
pixels
|
|
Digital Zoom
|
12x (312x with
optical zoom)
|
|
Horizontal
Viewing Angle
|
42.2º (wide
end) to 1.6º (tele end)
|
|
Minimum Object
Distance
|
320 mm (wide
end) to 1500 mm (tele end)
|
|
Sync System
|
Internal/External
(V-Lock)
|
|
Electronic
Shutter
|
1/1 to 1/10000
s
|
|
22 steps
|
|
White Balance
|
Auto
|
|
ATW
|
|
Indoor
|
|
Outdoor
|
|
One-push
|
|
Manual
|
|
Gain
|
Auto / Manual
(-3 to 28 dB
|
|
2 dB steps)
|
|
EV
Compensation
|
-10.5 to +10.5
dB (1.5 dB steps)
|
|
Backlight
Compensation
|
On/Off
|
|
Privacy Zone
Masking
|
On/Off (24
positions)
|
|
Focus System
|
Auto
(Sensitivity: normal and low)
|
|
One-push AF
|
|
Manual
|
|
Infinity
|
|
Interval AF
|
|
Zoom Trigger
AF
|
|
Camera
Operation / Zoom Switch
|
Zoom Tele
|
|
Zoom Wide
|
|
Effects
|
E-Flip
|
|
Nega Art
|
|
Black&White
|
|
Mirror Image
|
|
Exposure
Control
|
Auto
|
|
Manual
|
|
Priority mode
|
|
Bright
|
|
EV
compensation
|
|
Back-light
compensation
|
|
Video Output
Specifications
|
Detail:
|
|
Lens Value
|
26x
|
|
S/N Ratio
|
More than 50
dB
|
|
Minimum
Illumination
|
1.0 lux
|
|
Video Output
|
VBS: 1.0 Vp-p
(sync negative)
|
|
Y/C Output
|
|
Signal System
|
PAL
|
|
Horizontal
Resolution Value
|
460 TV Lines
|
|
Interfaces
Specifications
|
Detail:
|
|
Camera Control
Interface
|
VISCA (TTL
signal level)
|
|
Baud rate: 9.6
Kb/s
|
|
19.2 Kb/s
|
|
38.4 Kb/s
|
|
1 or 2 Stop
bit selectable
|
|
General
Specifications
|
Detail:
|
|

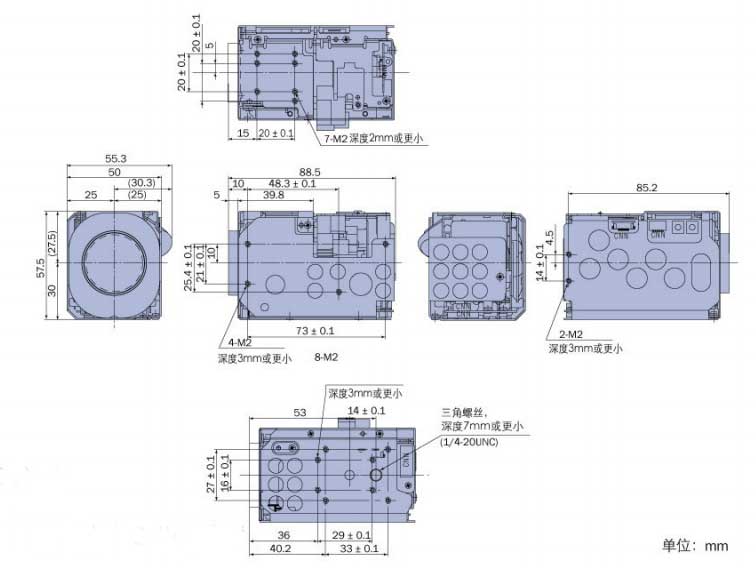

Dimensions (W
x H x D)
|
2 1/4 x 2 3/8
x 3 1/2 inches
|
|
(55.3 x 57.5 x
88.5 mm)
|
|
Weight
|
8.1 oz (230 g)
|
|
Operating
Temperature
|
32 to 122ºF (0
to +50ºC)
|
|
Storage
Temperature
|
-4 to 140ºF
(-20 to 60ºC)
|
|
Power
Consumption
|
1.6 W (motors
inactive)
|
|
3.3 W (motors
active)
|
|
Power
Requirements
|
6 to 12 V DC
|
