Camera Specifications

Detail:

Image Device

1/4-type EXview HAD™ CCD (Progressive Scan)

Effective Pixels

440,000

Digital Zoom

12x (216x with optical zoom)

Horizontal Viewing Angle

48.0° (wide end) to 2.8° (tele end)

Minimum Object Distance

10 mm* (wide) ~ 800 mm (tele)

*Default: 290 mm

Sync System

Internal/Ecternal (V-lock)

Electronic Shutter

1/1 to 1/10,000 s, 22 steps

White Balance

Auto, ATW, Indoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual

Gain

Auto/Manual?max. Gain Limit (-3 to 28 dN, 2 dB steps)

EV Compensation

Yes

Wide Dynamic Range

Auto Mode, IS/PS Mode

Privacy Zone Masking

Spherical

Character Generator

Title: 20 characters/line, max. 11 lines

Picture Effects

E-Flip

Nega Art

B/W

Mirror Image

Color Enhancement

Exposure Control

Auto

Manual

Priority Mode (shutter priority & iris priority)

Bright

EV Compensation

Slow AE

Video Output Specifications

Detail:

Lens Value

18x optical zoom f=4.1 mm (wide) ~73.8 (tele)

S/N Ratio

More than 50 dB

Minimum Illumination

0.7 lx (typical) (F1.4, 50 IRE)

Video Output

Analog: VBS: 1.0 Vp-p (sync negative), Y/C

Digital: Y/CB/CR 4:2:2 (ITU-R BT656 Style)

Signal System

PAL

Horizontal Resolution

550 TV Lines

Interfaces Specifications

Detail:

Camera Control Interface

VISCA (TTL signal level) Baud Rate: 9.6Kb/s, 19.2Kb/s, 38.4Kb/s Stop bit: 1/2 bit selectable

General Specifications

Detail:

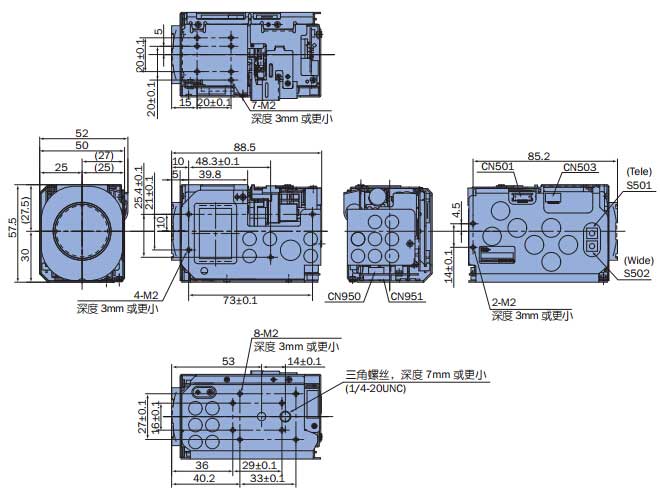

Dimensions (W x H x D)

52.0 x 57.5 x 88.5 mm

Weight

230 g

Operating Temperature

-5° C to 60° C

Power Consumption

2.6 W (motors active 4.4 W)
