Camera Specifications

Detail:

Image Device

1/4-type EXview HAD CCD

Effective Pixels

Approx. 440000 pixels

Digital Zoom

12x (216x with optical zoom)

Horizontal Viewing Angle

48.0º (wide end) to 2.8º (tele end)

Minimum Object Distance

35 mm (wide end) to 800 mm (tele end)

Sync System

Internal/External (V-Lock)

Electronic Shutter

1/1 to 1/10000 s

22 steps

White Balance

Auto

ATW

Indoor

Outdoor

One-push

Manual

Gain

Auto / Manual (-3 to 28 dB

2 dB steps)

EV Compensation

-10.5 to +10.5 dB (1.5 dB steps)

Backlight Compensation

On/Off

Privacy Zone Masking

On/Off (24 positions)

Focus System

Auto (Sensitivity: normal and low)

One-push AF

Manual

Infinity

Interval AF

Zoom Trigger AF

Camera Operation / Zoom Switch

Zoom Tele

Zoom Wide

Picture Effects

E-Flip

Nega Art

Black&White

Mirror Image

Exposure Control

Auto

Manual

Priority mode

Bright

EV compensation

Back-light compensation

Video Output Specifications

Detail:

Lens Value

18x

S/N Ratio

More than 50 dB

Minimum Illumination

0.7 lux

Video Output

VBS: 1.0 Vp-p (sync negative)

Y/C Output

Signal System

PAL

Horizontal Resolution Value

460 TV Lines

Interfaces Specifications

Detail:

Camera Control Interface

VISCA (TTL signal level)

Baud rate: 9.6 Kb/s

19.2 Kb/s

38.4 Kb/s

1 or 2 Stop bit selectable

General Specifications

Detail:

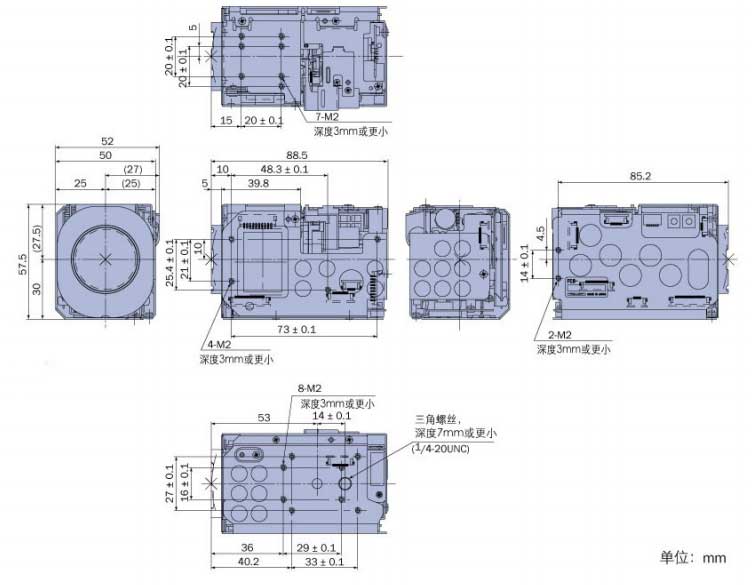

Dimensions (W x H x D)

2 1/8 x 2 3/8 x 3 1/2 inches

(52.0 x 57.5 x 88.5 mm)

Weight

8.1 oz (230 g)

Operating Temperature

32 to 122ºF (0 to +50ºC)

Storage Temperature

-4 to 140ºF (-20 to 60ºC)

Power Consumption

1.6 W (motors inactive)

2.5 W (motors active)

Power Requirements

6 to 12 V DC
