Sony’s FCB Series of colour block cameras offers excellent picture quality, superb flexibility, and easy operation in a variety of applications ranging from surveillance to traffic monitoring, and in many other visual communication environments.

1/4 type EXview HAD CCD
Minimum Sensitivity of 0.7 lux (50 IRE)
216x total optical zoom (18x optical zoom/12x digital)
440,000 pixels (PAL)
High-speed serial communication (max. 38.4 kbps) and TTL signal-level control (VISCA™protocol) for quick command processing
Programmable factory present
Various AE modes including zoom trigger and interval mode
Various AF modes including Spot AE mode to optimize the brightness within specific area
Various customizable settings
Key switch control compatibility
Lower power consumption (minimum 1.6 W)
EEPROM backup system without battery
Lead-free solder mounting board

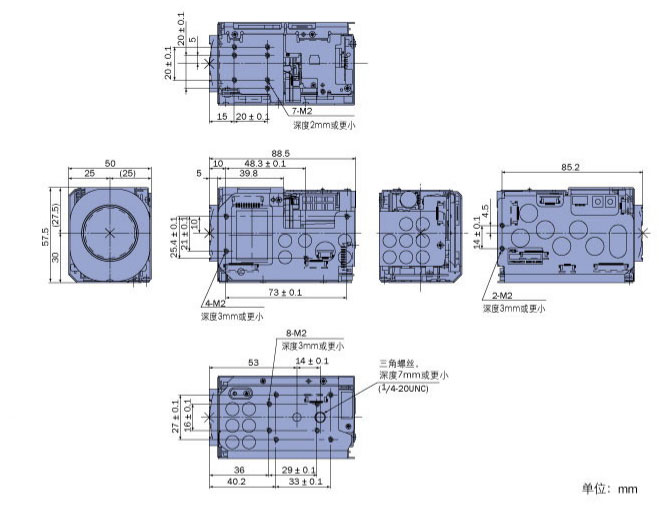

SIZE：

Camera Specifications	Detail:
Image Device	1/4-type EXview HAD CCD
Effective Pixels	Approx. 440000 pixels
Digital Zoom	12x (216x with optical zoom)
Horizontal Viewing Angle	48.0º (wide end) to 2.8º (tele end)
Minimum Object Distance	35 mm (wide end) to 800 mm (tele end)
Sync System	Internal/External (V-Lock)
Electronic Shutter	1/1 to 1/10000 s
Electronic Shutter	22 steps
White Balance	Auto
	ATW
	Indoor
	Outdoor
	One-push
	Manual
Gain	Auto / Manual (-3 to 28 dB
Gain	2 dB steps)
EV Compensation	-10.5 to +10.5 dB (1.5 dB steps)
Backlight Compensation	On/Off
Privacy Zone Masking	On/Off (24 positions)
Focus System	Auto (Sensitivity: normal and low)
	One-push AF
	Manual
	Infinity
	Interval AF
	Zoom Trigger AF
Camera Operation / Zoom Switch	Zoom Tele
Camera Operation / Zoom Switch	Zoom Wide
Picture Effects	E-Flip
	Nega Art
	Black&White
	Mirror Image
Exposure Control	Auto
	Manual
	Priority mode
	Bright
	EV compensation
	Back-light compensation
Video Output Specifications	Detail:
Lens Value	18x
S/N Ratio	More than 50 dB
Minimum Illumination	0.7 lux
Video Output	VBS: 1.0 Vp-p (sync negative)
Video Output	Y/C Output
Signal System	PAL
Horizontal Resolution Value	460 TV Lines
Interfaces Specifications	Detail:
Camera Control Interface	VISCA (TTL signal level)
	Baud rate: 9.6 Kb/s
	19.2 Kb/s
	38.4 Kb/s
	1 or 2 Stop bit selectable
General Specifications	Detail:
Dimensions (W x H x D)	2 x 2 3/8 x 3 1/2 inches
Dimensions (W x H x D)	(50.0 x 57.5 x 88.5 mm)
Weight	8.1 oz (230 g)
Operating Temperature	32 to 122ºF (0 to +50ºC)
Storage Temperature	-4 to 140ºF (-20 to 60ºC)
Power Consumption	1.6 W (motors inactive)
Power Consumption	2.5 W (motors active)
Power Requirements	6 to 12 V DC
