Function Characteristic:
1. Adopt 1/2.8" SONY CMOS image sensor
2. WDR , Digital noise reduction
3. Digital high speed focus, continuous track
4. Super low illumination and power consumption.
|
Model No .
|
SZ-R8100H
|
|
Signal model
|
PAL/NTSC
|
|
Image sensor
|
1/2.8" Sony CMOS
|
|
Effective pixel
|
1280(H) x 720(V)
|
|
Horizontal resolution
|
1200TVL
|
|
Minimum illumination
|
Color:0.01Lux B/W:0.001Lux/0Lux
|
|
WDR
|
Yes
|
|
3D noise reduction
|
Yes
|
|
Frame accumulated
|
Yes
|
|
Privacy mask
|
Yes
|
|
Sync system
|
Internal sync
|
|
Digital focus
|
10x
|
|
Focus
|
Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function
|
|
Gain Control
|
Auto/Manual
|
|
White balance
|
Auto
|
|
S/N radio
|
>60dB(Enhanced)
|
|
Electronic shutter
|
1/50(1/60)S~1/100,000S
|
|
Video output
|
1.0Vp-p 75 Ω
|
|
Language
|
Chinese/English
|
|
Screen menu
|
AWB , Digital noise reduction , Light suppression,Mirror
|
|
Control
|
SONY/LG
|
|
Interface mode
|
Nine -pin connector
|
|
Gama modulus
|
0.45
|
|
Power supply
|
DC12V,90~120mA
|
|
Work temperature
|
-20°C~+70°C
|
|

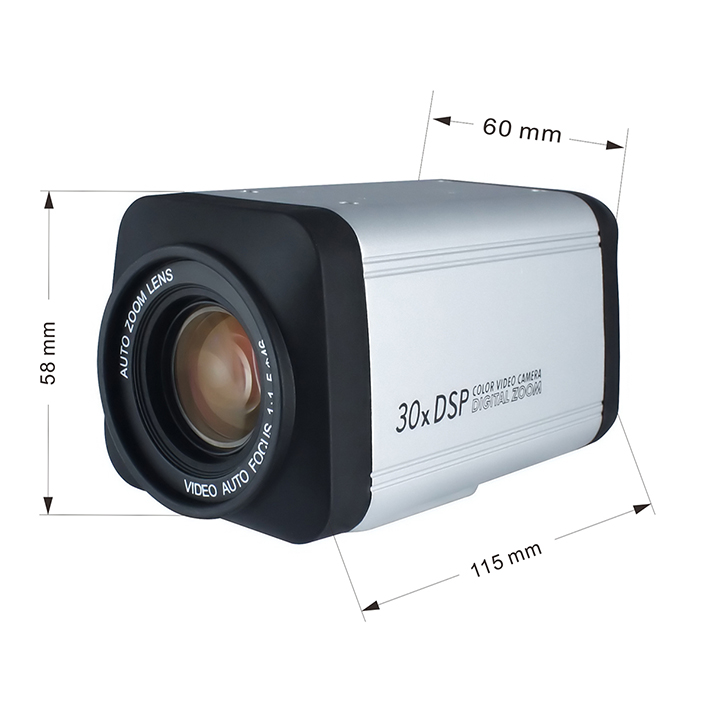

Dimension
|
W60mmXH58mmXL115mm
|
|
Weight
|
400g
|
