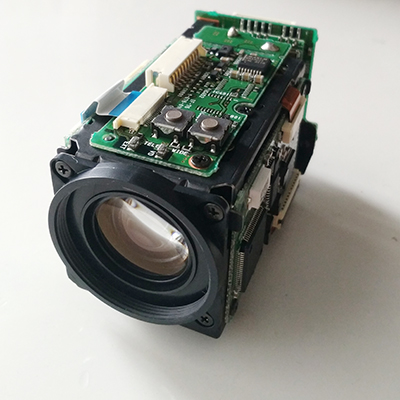

Main Features:
* New! 1/4 type EXview HAD CCD
* Minimum Sensitivity of 1.5 lux
* 40x zoom ratio (10x optical, 4x digital)
* High quality image in both digital zoom and slow shutter modes
* Various AE modes including newly added Zoom trigger and interval mode
* Various AF modes including newly added Spot AE mode to optimize the brightness within the specific area
* Expanded mode parameter for shutter speed and gain level
* Various customizable settings
* Key switch control compatibility
* Low power consumption (minimum 1.5 W)
* EEPROM backup system without battery
* Lead-free solder mounting board
* High-speed serial communication (ma. 38.4 kbps) and TTL signal-level control (VISCA protocol) for quick command processing
* Programmable factory preset
|
Camera
Specifications
|
Detail:
|
|
Image Device
|
1/4-type
Exview HAD CCD
|
|
Effective
Pixels
|
Approx. 440000
|
|
Digital Zoom
|
4x (40x with
optical zoom)
|
|
Horizontal
Viewing Angle
|
46° (wide end)
to 5.0° (tele end)
|
|
Minimum Object
Distance
|
10 mm (wide
end)
|
|
1000 mm (tele
end)
|
|
Sync System
|
Internal
|
|
Electronic
Shutter
|
1/1 to 1/10000
s
|
|
White Balance
|
Auto
|
|
ATW
|
|
Indoor
|
|
Outdoor
|
|
One-Push
|
|
Manual
|
|
Gain
|
Auto / Manual
(-3 to 28 dB
|
|
2 dB steps)
|
|
EV
Compensation
|
-10.5 to +10.5
dB (1.5 dB steps)
|
|
Backlight
Compensation
|
On/Off
|
|
Focus System
|
Auto
(Sensitivity: normal and low)
|
|
One-Push AF
|
|
Manual
|
|
Infinity
|
|
Interval AF
|
|
Zoom Trigger
AF
|
|
Camera
Operation / Zoom Switch
|
Zoom Tele
|
|
Zoom Wide
|
|
Effects
|
Neg. Art
|
|
Black &
White
|
|
Mirror Image
|
|
Exposure
Control
|
Auto
|
|
Manual
|
|
Priority mode
|
|
Bright
|
|
EV
compensation
|
|
Backlight
compensation
|
|
Video Output
Specifications
|
Detail:
|
|
Lens Value
|
10x
|
|
S/N Ratio
|
More than 50
dB
|
|
Minimum
Illumination
|
1.5 lux
|
|
Video Output
|
VBS: 1.0 Vp-p
(sync negative)
|
|
Y/C Output
|
|
Signal System
|
PAL
|
|
Horizontal
Resolution Value
|
460 TV Lines
|
|
Interfaces
Specifications
|
Detail:
|
|
Camera Control
Interface
|
VISCA
(TTL/RS-232C signal level)
|
|
Baud rate: 9.6
Kb/s
|
|
19.2 Kb/s
|
|
38.4 Kb/s
|
|
Stop bit: 1/2
selectable
|
|
General
Specifications
|
Detail:
|
|
Dimensions (W
x H x D)
|
1 9/16 x 1
13/16 x 2 5/8 inches
|
|
(39.3 x 44.8 x
65 mm)
|
|
Weight
|
3.4 oz (95 g)
|
|
Operating
Temperature
|
32 to 122 °F
(0 to 50 °C)
|
|
Storage
Temperature
|
-4 to 140 °F
(-20 to 60 °C)
|
|
Power
Consumption
|
1.6 W (motors
inactive)
|
|
2.1 W (motors
active)
|
|
Power
Requirements
|
6 to 12 V DC/
|
