Camera Specifications

Detail:

Image Device

1/3 type Super HAD II CCD

Effective Pixels

Approx. 440,000 pixels

Digital Zoom

10x (120x with optical zoom)

Horizontal Viewing Angle

52º (wide end) to 5.4° (tele end)

Minimum Object Distance

15mm (wide end) to 800 mm (tele end)

Sync System

Internal/External (V-lock)

Electronic Shutter

1/1 to 1/10,000 s, 22 steps

White Balance

Auto, ATW, Indoor, Outdoor, One-push, Manual

Gain

Auto / Manual (-3 to 28 dB, 2dB steps)

EV Compensation

-10.5 to 10.5 dB (1.5 dB steps)

Backlight Compensation

On/Off

Privacy Zone Masking

On / Off (24 position, 8 position per screen, 14 colors & mosaic)

Character Generator

Mode display On/Off (White Balance, Gain, etc.) Title display Max 11 lines (20 characters/ lines)

Flicker Cancel

N/A

Focus System

Auto (Sensitivity, normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom trigger AF

Picture Effects

E-Flip, Nega Art, Black & White, Mirror Image

Lens Mount

10x Optical Zoom (f=5.1mm wide to 51.0mm tele) F1.8 to F2.1

Video Output Specifications

Detail:

S/N Ratio

More than 50 dB

Minimum Illumination

1/60 s, 1/50s mode: 0.25 lx (typical) (F1.8, 50 IRE)

Signal System

PAL

Horizontal Resolution

On/Off (On: 530 TV Lines)

Interfaces Specifications

Detail:

Camera Control Interface

VISCA (TTL Signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 1 or 2 stop bit selectable

General Specifications

Detail:

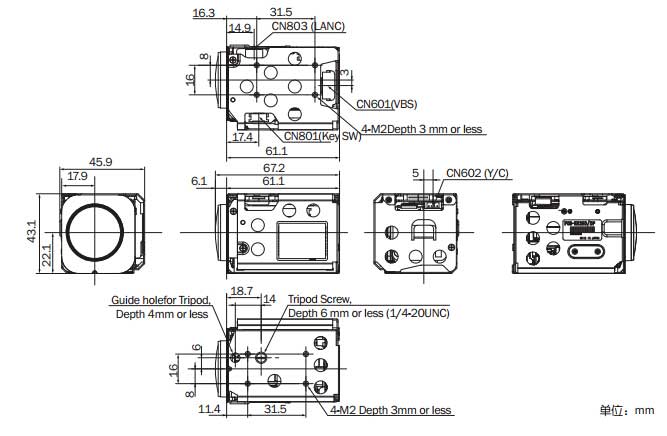

Dimensions (W x H x D)

49.5 x 43.1 x 67.2 mm (1-13/16 x 1-3/4 x 2-3/4 inches)

Weight

140 g (5 oz)

Operating Temperature

0º C to 50ºC

Storage Temperature

-20º C to 60ºC

Power Consumption

6 to 12 V DC/2.8W (motors inactive), 6.5W (motors active)
