Camera
Specifications
|
Detail:
|
|
Image Device
|
1/4-type
EXview HAD CCD (PS)
|
|
Effective
Pixels
|
440,000
|
|
Digital Zoom
|
12x (144x with
optical zoom)
|
|
Horizontal
Viewing Angle
|
53.6° (wide
end) to 4.6° (tele end)
|
|
Minimum Object
Distance
|
10 mm* (wide)
~ 800 mm (tele) *Default: 290 mm
|
|
Sync System
|
Internal/External
(V-lock)
|
|
Electronic
Shutter
|
1/1 to
1/10,000 s, total 22 steps
|
|
White Balance
|
Auto. ATW,
Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual
|
|
Gain
|
Auto/Manual/Max.
Gain Limit (-3 to +28 dB, +2 dB step/total 16 steps)
|
|
Wide Dynamic
Range
|
Yes
|
|
Privacy Zone
Masking
|
Spherical
|
|
Character
Generator
|
Yes
(English/Chinese)
|
|
Focus System
|
Auto
(Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom
Trigger AF, Focus compensation in ICR On
|
|
Effects
|
E-flip, Nega
Art, Black & White, MirrorImage, Color Enhancement
|
|
Exposure
Control
|
Auto, Manual,
Priority Mode (shutter priority & iris priority), Bright, EV
Compensation, Slow AE
|
|
Video Output
Specifications
|
Detail:
|
|
Lens Value
|
12x optical
zoom lens, f=3.7 mm (wide) to 44.4 mm (tele), F1.6to F2.5
|
|
S/N Ratio
|
More than 50
dB
|
|
Minimum
Illumination
|
Approx. 1.0 lx
(F1.6, 50 IRE)
|
|
Video Output
|
Analog: VBS:
1.0 Vp-p (sync negative)
|
|
Horizontal
Resolution
|
550 TV Lines
|
|
Interfaces
Specifications
|
Detail:
|
|
Camera Control
Interface
|
VISCA™
protocol (CMOS 5 V) 9.6 Kbps, 19.2 Kbps, 38.4 Kbp; Stop bit, 1 bit
|
|
General
Specifications
|
Detail:
|
|

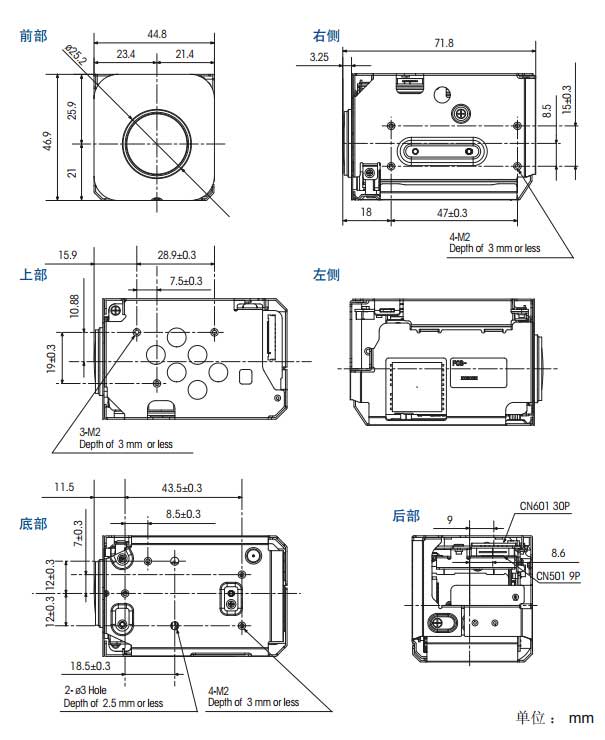

Dimensions (W
x H x D)
|
44.8 x 46.9 x
71.8 mm
|
|
Weight
|
Less than 150
g
|
|
Operating
Temperature
|
-5°C ~ 60°C
|
|
Storage
Temperature
|
-20° ~ 60°C
|
|
Power
Consumption
|
3.7 W (motors
active) / 2.3 W (motors inactive)
|
|
Power
Requirements
|
6.0 V ~12.0 V
DC
|
