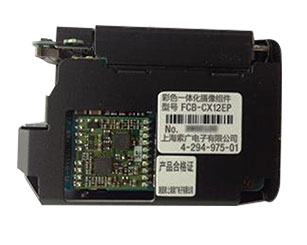

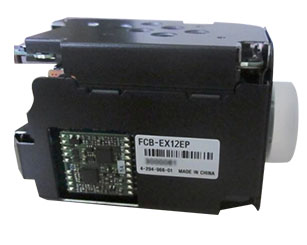

SONY FCB-EX12EP&FCB-CX12EP CCD Block Camera, PAL& NTSC_SafeEye

Digital Output (ITU-R BT656): By using the digital interface, the quality of the camera’s video signal is maintained with minimal deterioration. This can lead to cost savings due to the direct connection to codecs/systems without the need for any additional components.

Temperature Readout: The value of the internal temperature of the FCB-EX12E camera can be read out via the VISCA™ protocol. When checking the internal temperature of equipment (i.e., speed dome unit), it is possible to use this data to turn a fan or heater on/off inside the equipment as needed.

Color Enhancement: Ideally suited for low vision applications, new color enhancement options can make reading text and pictures less challenging. Available options include monochrome, binary, inverted and enhanced color modes.

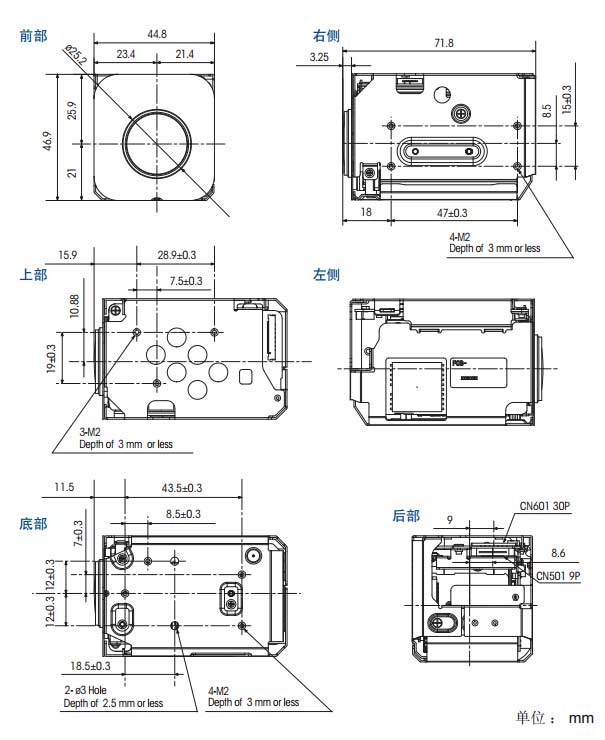

Size：

Camera Specifications	Detail:
Image Device	1/4-type EXview HAD CCD (PS)
Effective Pixels	440,000
Digital Zoom	12x (144x with optical zoom)
Horizontal Viewing Angle	53.6° (wide end) to 4.6° (tele end)
Minimum Object Distance	10 mm* (wide) ~ 800 mm (tele) *Default: 290 mm
Sync System	Internal/External (V-lock)
Electronic Shutter	1/1 to 1/10,000 s, total 22 steps
White Balance	Auto. ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual
Gain	Auto/Manual/Max. Gain Limit (-3 to +28 dB, +2 dB step/total 16 steps)
Wide Dynamic Range	No
Privacy Zone Masking	Spherical
Character Generator	Yes (English/Chinese)
Focus System	Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR On
Picture Effects	E-flip, Nega Art, Black & White, MirrorImage, Color Enhancement
Exposure Control	Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV Compensation, Slow AE
Video Output Specifications	Detail:
Lens Value	12x optical zoom lens, f=3.7 mm (wide) to 44.4 mm (tele), F1.6to F2.5
S/N Ratio	More than 50 dB
Minimum Illumination	Approx. 1.0 lx (F1.6, 50 IRE)
Video Output	Analog: VBS: 1.0 Vp-p (sync negative)
Horizontal Resolution	550 TV Lines
Interfaces Specifications	Detail:
Camera Control Interface	VISCA™ protocol (CMOS 5 V) 9.6 Kbps, 19.2 Kbps, 38.4 Kbp; Stop bit, 1 bit
General Specifications	Detail:
Dimensions (W x H x D)	44.8 x 46.9 x 71.8 mm
Weight	Less than 150 g
Operating Temperature	-5°C ~ 60°C
Storage Temperature	-20° ~ 60°C
Power Consumption	3.0 W (motors active) / 1.9 W (motors inactive)
Power Requirements	6.0 V ~12.0 V DC
