SONY FCB-EX11DP&FCB-CX11DP 10x PALColor Block Camera_SafeEye

Overview
Specifications
Download

Highlights:
1/4-type EXview HAD CCD
Advanced Digital Signal Processor (DSP)
High Horizontal Resolution of 530 TV Lines
120x Zoom Ratio (10x Optical, 12x Digital)
SMART (Sony Modular Automatic Lens Reset Technology) Lens Control
Angle of View (H) - 46.0° (wide end) to 4.6° (tele end)
Advanced Spherical Privacy Zone Masking with Mosaic Effect
Video Motion Detection
Minimum Illumination - 1.0 lx (F1.8, 50 IRE typical)
16 bytes memory
E-Flip Function
Slow AE Response - Ideal for monitoring areas in which lighting conditions abruptly change
Spot AE
Multi-Line On-screen Display
Picture Freeze Function
Electronic Shutter/Slow Shutter - 1 to 1/10,000s, 22 steps
High-Speed Serial Interface (maximum 38.4 Kb/s with TTL Signal-Level Control - VISCA protocol
Internal/External Sync
Customizable Settings
Dimensions: 35.9 x 40.8 x 59.2 (mm)
Mass: 95g

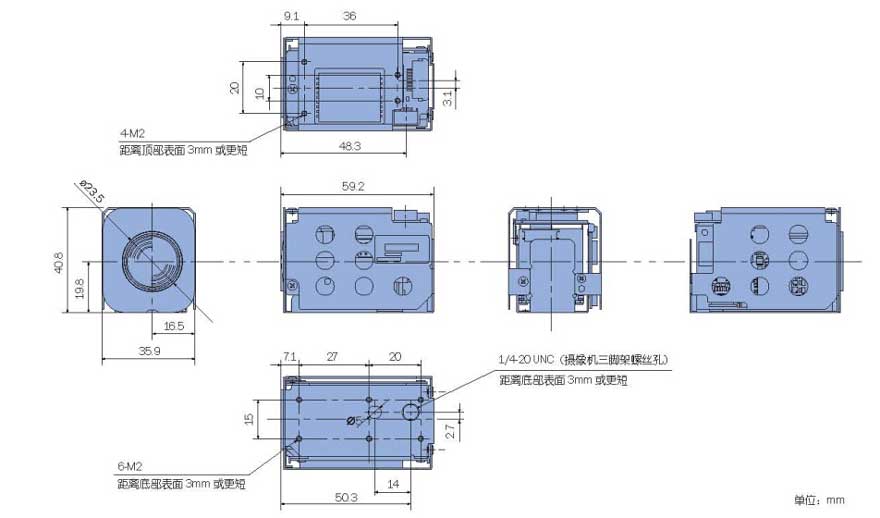

SIZE：

Camera Specifications	Detail:
Image Device	1/4-type EXview HAD CCD
Effective Pixels	Approx. 440000 pixels
Digital Zoom	12x (120x with optical zoom)
Horizontal Viewing Angle	46° (wide) to 4.6° (tele)
Minimum Object Distance	200 mm (wide)
Minimum Object Distance	1.0 m (tele)
Sync System	Internal/External (V-lock)
Electronic Shutter	1 to 1/10000 s
Electronic Shutter	22 steps
White Balance	Auto
	ATW
	Indoor
	Outdoor
	One-push
	Manual
Gain	Auto / Manual (-3 to 28 dB
Gain	2 dB steps)
EV Compensation	-10.5 to 10.5 dB (1.5 dB steps)
Backlight Compensation	On/Off
Privacy Zone Masking	On / Off (24 positions)
Character Generator	OSD: 11 Lines (20 characters per line)
Character Generator	Camera Mode display: ON/OFF
Focus System	Auto (Sensitivity: normal and low)
	One-push AF
	Manual
	Infinity
	Interval AF
	Zoom Trigger AF
Picture Effects	E-Flip
	Nega Art
	Black & White
	Mirror Image
Exposure Control	Auto
	Manual
	Priority Mode
	Bright
	EV Compensation
	Backlight Compensation
	Slow AE
Video Output Specifications	Detail:
Lens Value	10x
S/N Ratio	More than 50 dB
Minimum Illumination	1.0 lux
Video Output	VBS: 1.0 Vp-p (sync negative)
Video Output	Y/C
Signal System	PAL
Horizontal Resolution	On/Off (On: 530 TV lines)
Horizontal Resolution Value	530 TV Lines
Interfaces Specifications	Detail:
Camera Control Interface	VISCA (TTL signal level)
	Baud rate: 9.6 Kb/s
	19.2 Kb/s
	38.4 Kb/s
	1 or 2 Stop bit selectable
General Specifications	Detail:
Dimensions (W x H x D)	1 7/16 x 1 5/8 x 2 3/8 inches
Dimensions (W x H x D)	(35.9 x 40.8 x 59.2 mm)
Weight	3.3 oz (95 g)
Operating Temperature	32 to 122 °F (0 to 50 C°)
Storage Temperature	-4 to 140 °F (-20 to 60 C°)
Power Consumption	1.9 W (motors inactive)
Power Consumption	2.8 W (motors active)
Power Requirements	DC 6 to 12 V

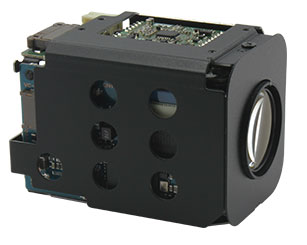

SONY FCB-EX11DP&FCB-CX11DP

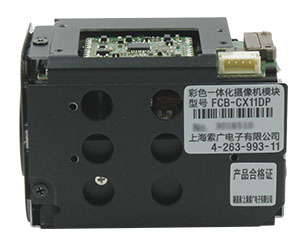

SONY FCB-EX11DP&FCB-CX11DP

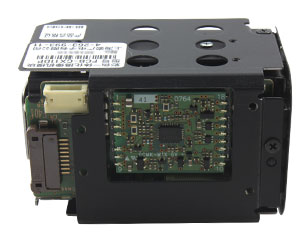

SONY FCB-EX11DP&FCB-CX11DP
