HDMI Output Board SDI Encoding Board ,HDMI SDI CVBS 3-in-1 Control Board For Sony Camera_SafeEye

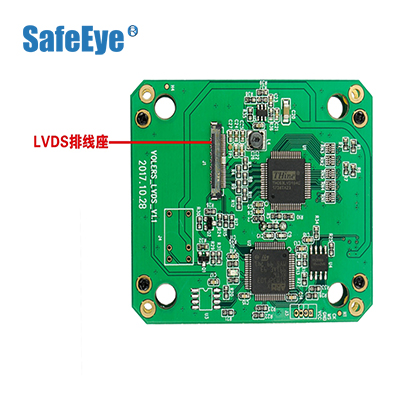

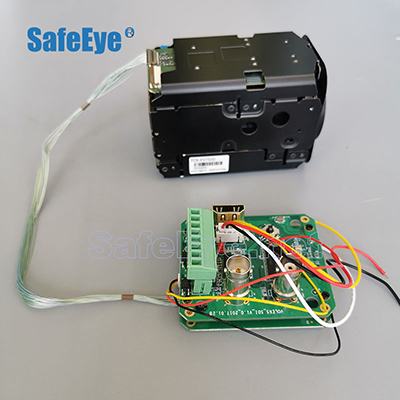

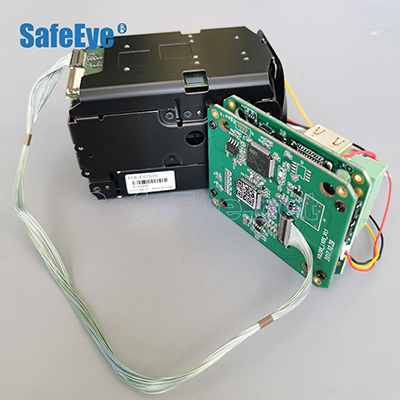

The SDI / HDMI / CVBS multi-function coding control board is specially designed for the SONY FCB digital high-definition movement module.It is connected to the coding board through the LVDS interface and simultaneously outputs 3G-SDI, HDMI, and CVBS video signals without the need to make any settings for the movement. , Can automatically recognize high-definition signals, and also supports other brand movements of SONY VISCA protocol.

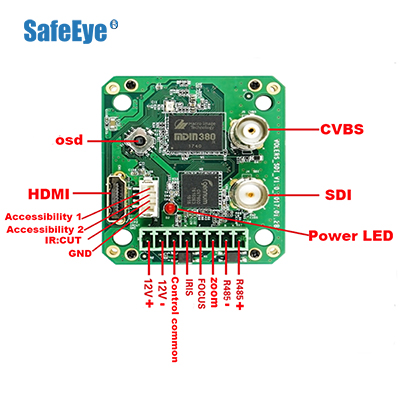

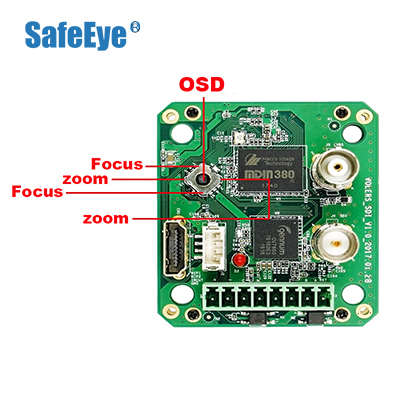

Main features: Support Sony FCB high-definition series and compatible camera image signal encoding processing, provide 3G-SDI / HDMI / CBVS three kinds of video signal synchronous output. The OSD menu in Chinese and English can be called up through the buttons, the 485 control keyboard or the decoder board, which is convenient for setting various technical parameters of the movement module and saving their parameter values. It can be connected to an infrared lamp, and has a synchronization interface outside the infrared lamp. Through the parameter setting of the movement, it can avoid the phenomenon that the color cannot be synchronized with the infrared lamp. Support RS485 control, automatically identify PELCO-D, PELCO-P protocol, baud rate 2400bps, 4800bps, 9600bps, address 1 ---- 255. Support power off memory function, when the movement parameter settings are saved, after the movement is powered off, there is no need to set the movement parameters again. It supports 232 control, and can also transmit the VISCA protocol through 485, which is convenient for communication with a computer or MCU (you need to choose one of the two messages). The unique video format can be changed to make it easier to change the video format to 720P50, 1080I50, CVBS when the image display is not visible, or to change the video format remotely through the 485 control keyboard. Unique 10 preset positions and automatic cruise function, the cruise time is 5 to 999 seconds. (Need to order message) Auxiliary function switch can be selected to facilitate the control of other external equipment such as wipers. (Need to order message) It can access various domestic movements that support SONY VISCA protocol.

Size: 55MM * 65MM * 32MM

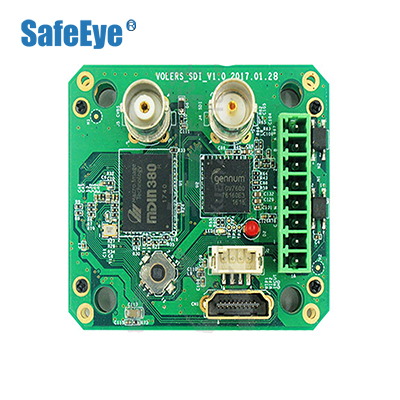

HDMI SDI CVBS 3-in-1 Control Board

HDMI SDI CVBS 3-in-1 Control Board

HDMI SDI CVBS 3-in-1 Control Board
