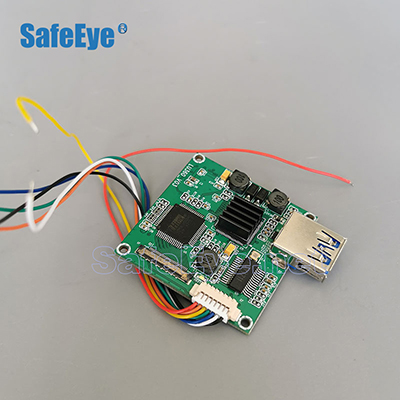

USB3.0 coded control board perfectly matched with SONY FCB-EV/CV series

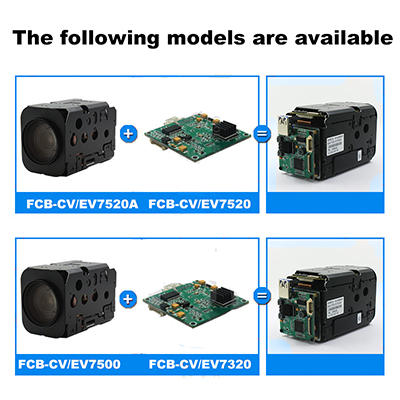

USB3.0 code control board, SONY Sony movement secondary development network coding control board, compatible with SONY FCB series HD integrated movement module, can be stored using TF card, can be applied to security, intelligent traffic flight equipment and video conference And other fields, and is one of the low-cost solutions for the existing PTZ from standard definition to high definition.

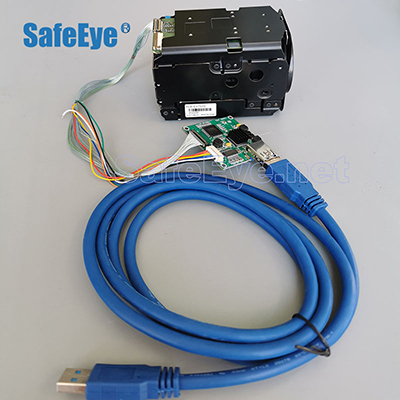

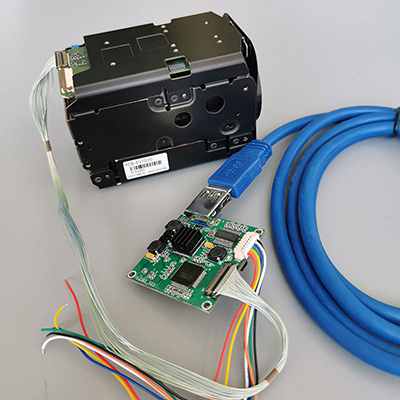

Designed for the SONY FCB digital high-definition movement module , the encoder board is connected via the LVDS interface ,and the USB3.0 interface outputs 1080P60 HD video signals. Support 720P50/60 , 1080P25/30 , 1080P50/60 video formats and display in full screen. Supporting various functions such as direct control of camera zoom through the USB serial port is a must-have for SONY camera development engineers. And support a set of external serial port, convenient for various control panels to control the camera. Used in medical equipment and image detection equipment.
Size: 42MM*42MM*10MM
