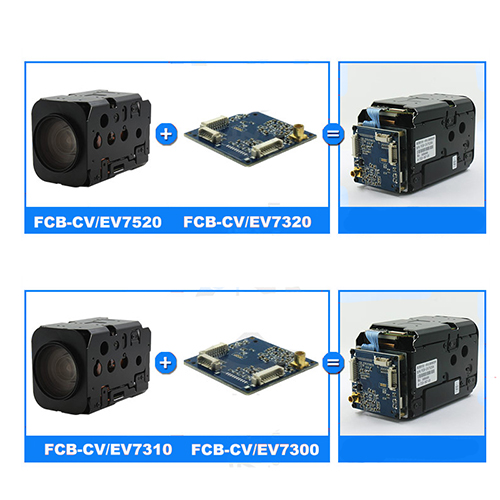

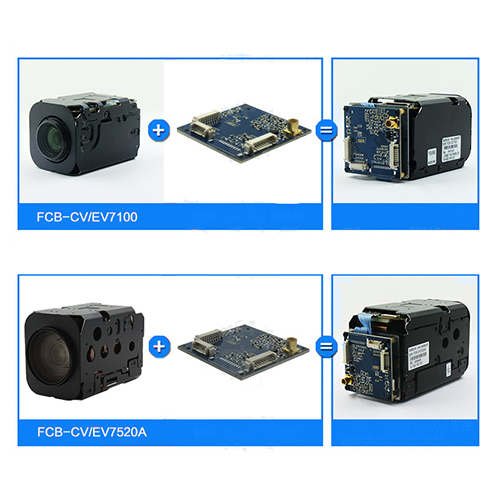

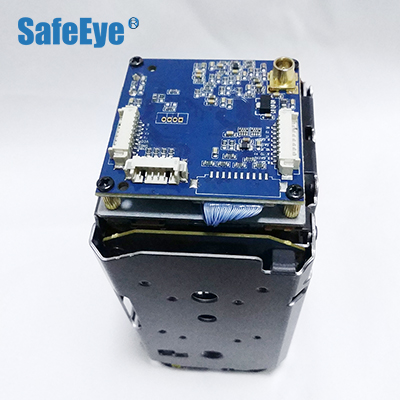

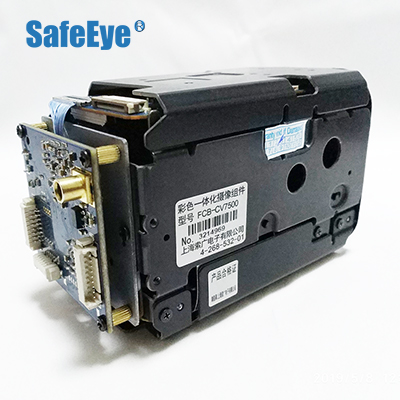

The HD/3G-SDI mini output coding control board developed by the company is divided into controllable and uncontrollable (this version is controllable version), which is specially developed for SONY FCB HD integrated movement module. Designed to be compatible with SONY HD FCB-EH3410&CH3410, FCB-EH3310&CH3310, FCB-EH3150&CH3150, FCB-EH6300&CH6300, FCB-EH6500&CH6500, FCB-EV7500&CV7500, FCB-EV5500&CV5500, FCB-EV7100&CV7100, FCB-EV7300&CV7300, FCB-EV7310&CV7310, FCB- Movement module such as EV5300&CV5300. This control panel is widely used in areas such as security, intelligent transportation, unmanned flight equipment, snapshot kiosks, police cars, visual acupressure and video conferencing.

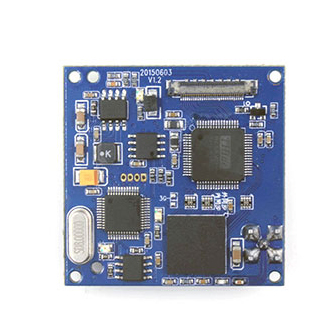

This control panel uses two 4-layer military-grade material PCB boards with gold-plated surface for easy tinning and avoiding solder joints. The use of custom 75 ohm mother copper BNC connector, ARM processor, foreign imported chips, thick sound brand capacitors and other electronic components, enabling HD-SDI signals can pass the eye diagram test.
The SONY FCB HD integrated movement module is connected via the LVDS line*1, and the HD SDI signal can be automatically recognized without any setting for the movement.
The OSD menu is called up by the button, 485 control keyboard or decoder board, which is convenient for setting various technical parameters of the movement module and saving its parameter values.
This control board can output HD-SDI and YPbPr (component) signals synchronously, or select the standard CVBS signal for separate output, which is convenient for debugging the position of the camera and setting technical parameters.
The infrared light can be externally connected, and the infrared light external synchronization interface is adopted, and the parameter setting of the movement is adopted to avoid the phenomenon that the color conversion cannot be synchronized with the infrared light.
Support RS485 control, automatically identify PELCO-D, PELCO-P protocol, baud rate 2400bps, 4800bps, 9600bps, address 1----255.
Support power-off memory function, when the movement parameter setting is saved, after the movement is powered off, it is not necessary to set the parameters of the movement again.
Support 232 control, convenient communication with computer or MCU (optional).
The unique video format change settings make it easy to change the video format to 720P50, 1080I50, CVBS when the image display is not visible, or change the video format remotely via the 485 control keyboard.
Unique 10 preset positions and automatic cruise function, cruise time is 5 to 999 seconds. (Optional)
Optional auxiliary function switch for easy control of other external devices such as wipers.
Can access a variety of domestic movements that support the SONY VISCA protocol.
Size: 42MM*42MM*5MM (excluding SMA connector height)
*1 Standard Equipped with a 12CM long LVDS HD Cable
