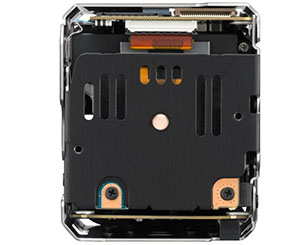

The new FCB-IV7315 camera module incorporates a 20x optical zoom lens suitable for short distance applications. In addition, this camera incorporates an Optical Low Pass Filter (OLPF) that provides extremely clear images, decreasing the effect of moiré when shooting documents or artificial patterns from a close distance. These useful features are ideal for low vision systems. Now with the choice of this non-security module, you can select the right camera to match your specific needs. Each FCB camera provides flexibility and high image quality for a wide variety of applications,including document scanning.

新的FCB-IV7315相机模块集成了20倍光学变焦镜头，适合短距离应用。 此外，本相机还包含一个光学低通滤波器（OLPF），可提供非常清晰的图像，在近距离拍摄文档或人工图案时减少莫尔条纹的效果。 这些有用的功能是低视觉系统的理想选择。 现在有了这个非安全模块的选择，你可以选择合适的相机，以满足你的特定需求。 每个FCB相机提供灵活性和高图像质量，适用于各种应用，包括文档扫描。

Features

The high-performance 1/2.8-type Exmor CMOS image sensor achieves superb Full-HD (1920 x 1080) picture quality, even in lowlight environments. Progressive scanning assures smoother pictures with reduced blur – ideal for capturing the detail in moving images.

捕捉清晰，清晰的全高清（1080 / 60p）图像
高性能1 / 2.8型Exmor CMOS图像传感器实现了卓越的全高清（1920 x 1080）图像质量，即使在低光环境下也是如此。 逐行扫描确保更平滑的图片，减少模糊 - 理想的捕捉运动图像的细节。

The FCB-EV7500 and FCB-EV5500 are equipped with a bright F1.6 maximum aperture and 30x optical zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups in security and surveillance applications.

快速，明亮的镜头，快速30倍光学变焦
FCB-EV7500和FCB-EV5500配备明亮的F1.6最大光圈和30倍光学变焦范围。 快速变焦操作（从广角端到远端）是从广域覆盖到安全和监视应用中详细特写的平滑，快速转换的理想选择。

The camera’s built-in image stabilizer function counters the eff ect of blurred, shaky images caused by low-frequency vibration. This is useful for outdoor surveillance and traffic monitoring applications, particularly if the camera is used on a bridge or mounting pole where it is subjected to wind or mechanical vibration.

获得更稳定的图像与图像稳定剂
相机的内置图像稳定器功能可抵消由低频振动引起的模糊，晃动图像的影响。 这对于户外监控和交通监控应用是有用的，特别是如果相机用在桥或安装杆上，其中它遭受风或机械振动。

Image stabilizer and optical/digital zoom are combined to enhance picture quality while maintaining the original horizontal angle of view. This ensures no compromise in image size, and reduces blurring.

StableZoom
图像稳定器和光学/数字变焦被组合以在保持原始水平视角的同时增强图像质量。 这确保了图像尺寸没有折中，并且减少模糊。

Advanced noise reduction technology filters noise from the image for clearer results, especially in low-light conditions. Noisereduction can be selected from five levels to suit a wide range of operating environments.

2D / 3D降噪
先进的降噪技术可过滤图像中的噪声，从而获得更清晰的结果，尤其是在低光条件下。 噪声可以从五个级别中选择，以适应各种操作环境。

Picture quality is enhanced dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range.

使用Visibility Enhancer更清晰地显示
在逐个像素的基础上动态地和自适应地增强图像质量，同时连续地适应给定动态范围内的场景。

Wide-D image processing technology gives the ability to see clear, detailed images in high-contrast or backlit environments. All models now support an exceptionally wide 130 dB dynamic range, which is activated via VISCA command.*5

宽动态范围
宽D图像处理技术能够在高对比度或背光环境中查看清晰，详细的图像。所有型号现在支持非常宽的130 dB动态范围，通过VISCA命令激活

The de-fog feature allows clearer and natural viewing in foggy or misty scenes. When this feature is activated, the camera detects the haze level and automatically applies the required effects. Depending on user requirements, the level of these effects can be adjusted via VISCA command.

除雾
除雾功能允许在雾或薄雾场景中更清晰自然的观看。激活此功能时，相机会检测雾度级别并自动应用所需的效果。根据用户要求，这些效果的水平可以通过VISCA命令进行调整。

HLC technology helps to improve, for example, the visibility of license plates when bright headlights are shot under low-light conditions. The bright parts in the image are masked and compensated for automatically to achieve better visibility.

HLC（高光补偿）
HLC技术有助于提高例如在低光条件下拍摄明亮前照灯时车牌的可见性。图像中的亮部分被自动屏蔽和补偿，以实现更好的可见性。

Benefit from optimized picture quality in changing light conditions – a frequent challenge in around-the-clock security operations. In high sensitivity mode the FCB-EV5300 can operate eff ectively in lighting levels as low as 0.05 lx (ICR off ).

清晰的视觉，全天候与日/夜
受益于在不断变化的光线条件下优化的画面质量 - 这是全天候安全操作中的常见挑战。在高灵敏度模式下，FCB-EV5300可在低至0.05 lx（ICR关闭）的照明水平下有效工作。

In low-light conditions, the camera automatically switches from Day to Nightmode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness. The spherical privacy zone masking feature enables areas of view to be selectively masked for privacy. Masked areas are automatically interlocked with the camera’s pan/tilt/zoom movements.

自动ICR（自动红外截止滤波器去除）
在低光照条件下，相机自动从白天切换到夜晚模式，取消红外截止滤镜以提高近处黑暗中清晰图像的灵敏度。球形隐私区域掩蔽特征使得可以为了隐私而选择性地遮蔽视域。遮罩区域会与相机的摇摄/倾斜/变焦移动自动互锁。

Video signal outputs are available in a range of HD (digital and analog) and SD formats, reducing integration cost and complexity by avoiding the need for additional analog/ digital converters. Video output modes can be changed ‘on the fly’ during normal operation, without a hardware reboot of the camera.

选择HD和SD输出模式
视频信号输出提供一系列高清（数字和模拟）和SD格式，通过避免需要额外的模拟/数字转换器，降低了集成成本和复杂性。视频输出模式可以在正常操作期间“即时”更改，而无需重新启动摄像机。

A single cable carries HD video signals plus VISCA communication and the power supply. Integration fl exibility is further supported by both 30-pin micro coaxial (digital output) and 24-pin FFC (analog output) interfaces.

单电缆连接，简化集成
单根电缆传输高清视频信号以及VISCA通信和电源。 30引脚微型同轴（数字输出）和24引脚FFC（模拟输出）接口进一步支持集成灵活性。

Versatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Colour Enhancement); Motion Detection/Alarm; Picture freeze; Temperature readout; Slow AE response; Electronic shutter/ slow shutter; and Title display/Camera mode display (English).

广泛的功能，多功能操作
通过广泛的功能和调整，确保多功能操作，包括：白平衡模式;图片效果（E-Flip，Nega艺术，黑白，镜像，色彩增强）;运动检测/报警;图片冻结;温度读数;慢AE响应;电子快门/慢快门;和标题显示/相机模式显示（英语）。
